“AUTOMATED APACHE2 MONITORING: CUSTOM METRIC, SNS AND AWS CLOUDWATCH INTEGRATION USING PYTHON"

step 1:

• Launch AWS EC2 instance and connect through the SSH in your terminal !

step 2:

• Update your Ec2 instance with this command

   sudo apt-get update

step 3:

• Install apache2 on ubuntu

   sudo apt-get install apache2

• enable and start the apache2 service

   sudo systemctl enable apache2

   sudo systemctl start apache2

• check the status of apache2 service

   sudo systemctl status apache2

step 4:

• check python3 is available or not if it is not available then install first

   python3 --version

• if python is not available

   sudo apt-get install python3

• install pip for import additional python libraries

   sudo apt-get install python3-pip

• install boto3 library for Cloudwatch

   pip install boto3

step 5:

• install awscli and configure aws credential

   sudo apt-get install awscli

   aws configure

• AWS Access Key ID [None]: <your access key>

• AWS Secret Access Key [None]: <your secret key>

• Default region name [None]: <your aws region>

step 6:

• create a /bashcripts directory

   mkdir /bashcripts
   cd /bashcripts/

• create a 3 file using touch command

   touch instance-id instance-id.sh apache2.py

• if there is any permission issue please check it

   nano apache2.py

• put this code into apache2.py and also make change according to your requirement

import subprocess
import os
import boto3

INSTANCE_ID = open('/bashcript/instance-id').read().strip()

def check_apache2_status():
    process = subprocess.Popen(['systemctl', 'status', 'apache2'],          stdout=subprocess.PIPE)
    output = process.communicate()[0]
    status = output.decode()

    if 'Active: active' in status:
        return 1
    else:
        return 0

status = check_apache2_status()
print(status)

cloudwatch = boto3.client('cloudwatch', region_name='ap-south-1')

cloudwatch.put_metric_data(
    Namespace='Custom-metric-namespace',
    MetricData=[
      {  'MetricName': 'apache2-monitor',
         'Value': status,
         'Dimensions': [
           {
               'Name': 'InstanceId',
               'Value': INSTANCE_ID
           }
       ]
    }
  ]
)

• get instance id of your instance, paste as it is can’t change anything

   #!/bin/bash
   curl http://169.254.169.254/latest/meta-data/instance-id

• change mode of this file

   chmod a+x *.sh

step 7:

• set crontab for apache2.py and instance-id.sh

   crontab -e

   * * * * * sh /bashcripts/instance-id.sh > /bashcripts/instance-id

   * * * * * python3 /bashcripts/apache2.py

step 8:

• now configure the Cloudwatch part:

• first of all check our custom metric in All metrics in Cloudwatch

• now create a alarm for apache2 > select custom metric(apache2) > select instance id >

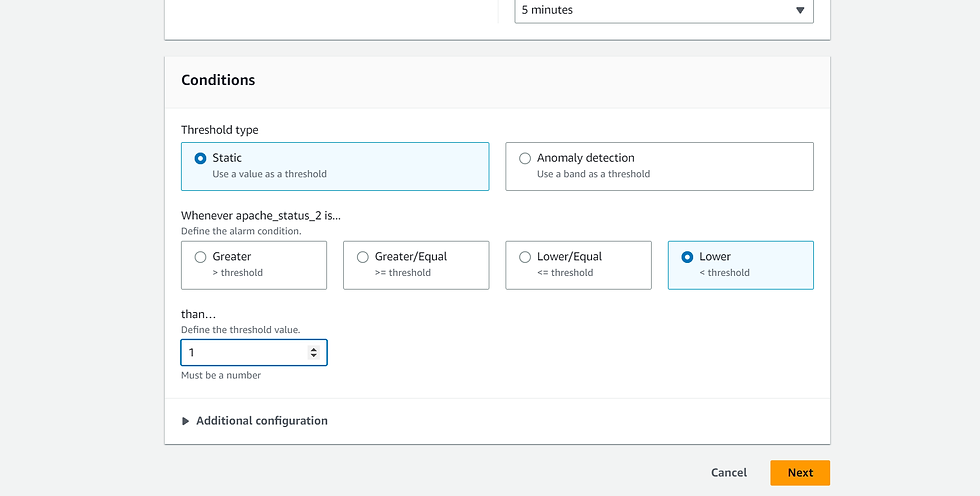

• now select a lower for threshold and put threshold value 1

• create a SNS new topic

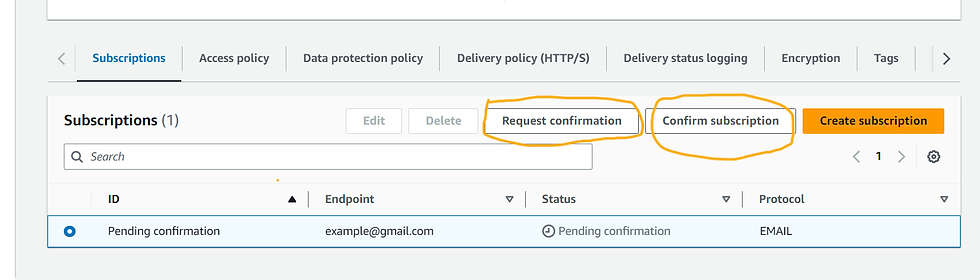

• Request and confirm subscription

• after completion of subscription create a alarm

• Add name and description > create alarm

• now check it’s work or not using stop the apache2 server
